UPS System

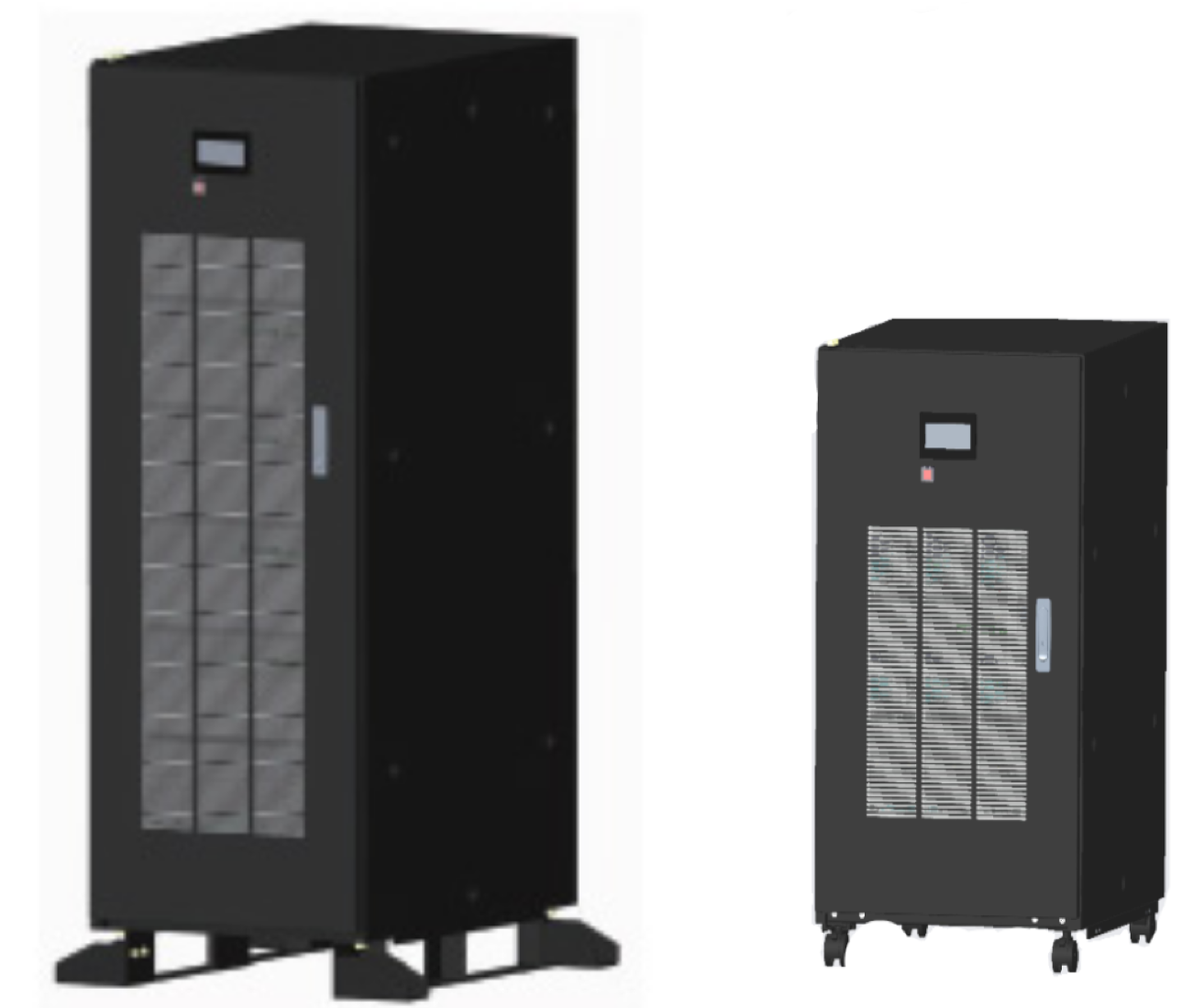

U100 Series
Widely used in various public facilities, such as: data centers, telecommunication systems, aerospace systems, radio and television systems, traffic control systems, factory control systems, power systems, and other fields.
High reliability, high performance, high efficiency modular UPS!
• Module redundancy design (N+1)
• Modules can be replaced online (hot swap function)
• Built-in maintenance bypass
• Overall device efficiency reaching 96%
Product Features
  • High Reliability
    The redundant design of the modules (N+1) means that even if one of module fails, the remaining UPS modules can continue to supply power.
  • High Performance
    Additional converter modules can be added to expand the UPS capacity as required
    Converter modules can be replaced online (hot-swap function)
    Built-in maintenance bypass
  • High Efficiency
    World's highest online conversion efficiency: 96%
    Energy-saving mode available
  • Intelligent Design
    Supports controlling the number of modules
    Touchscreen with 4-color backlit display
    Adopts the same design (same shape) for 20–80 kVa
  • Long-life Design
    No need to replace components in UPS units for 10 years
  • Automatic Hibernating Patrol Control
    Control the number of UPS modules running according to the load
    Module patrol management: Modules operate alternately according to load conditions to avoid potential failures and prolong and unify the module life
    N+1 redundancy is maintained during module patrol management to ensure reliability
  • High Performance Energy-saving Mode
    When supplying bypass power, the inverter remains in standby state, and can reach 98.5% high efficiency.
    When the utility power is abnormal, it can detect and switch the load to the inverter for power supply at high speed.
    The efficiency can reach 96% when powered by inverters.
